Big Bag Filling Station
COB-F, COB-M & Semi-Automatic Line
Fill big bags with powders and granules under controlled containment conditions, using a filling head with an inflatable seal. Three configurations are available, from a standalone filling station to a semi-automatic line capable of filling up to 50 big bags per hour.
VINCI Group / Actemium
30 Years of Bulk Handling Expertise
Designed for ATEX & CMR Requirements
Standard or Custom-Made

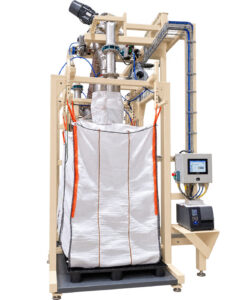

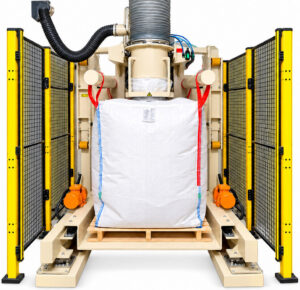

A big bag filling station is designed to fill flexible intermediate bulk containers (FIBCs) with powders and granules at the end of a production line or downstream of a storage system. Sofraden Bulk designs these stations around a filling head with an inflatable sealing gasket, ensuring containment during filling and minimizing dust emissions at the filling point.
The choice of configuration depends on your product and container formats: a fixed filling head for a single size, an adjustable filling head to accommodate different dimensions, or an integrated line when throughput becomes the deciding factor. Each station can then be equipped with options suited to your process, including pre-inflation, compaction, weighing, dust extraction and automatic pallet discharge.
COB-F, COB-M or Semi-Automatic Line:
Which Filling Station Should You Choose?
Three configurations to suit your product characteristics, the range of big bag sizes you use and your target filling rate.
COB-F · Fixed Filling Head
For less demanding materials and standard-sized big bags.
- Single big bag format
- The most straightforward solution for consistent requirements

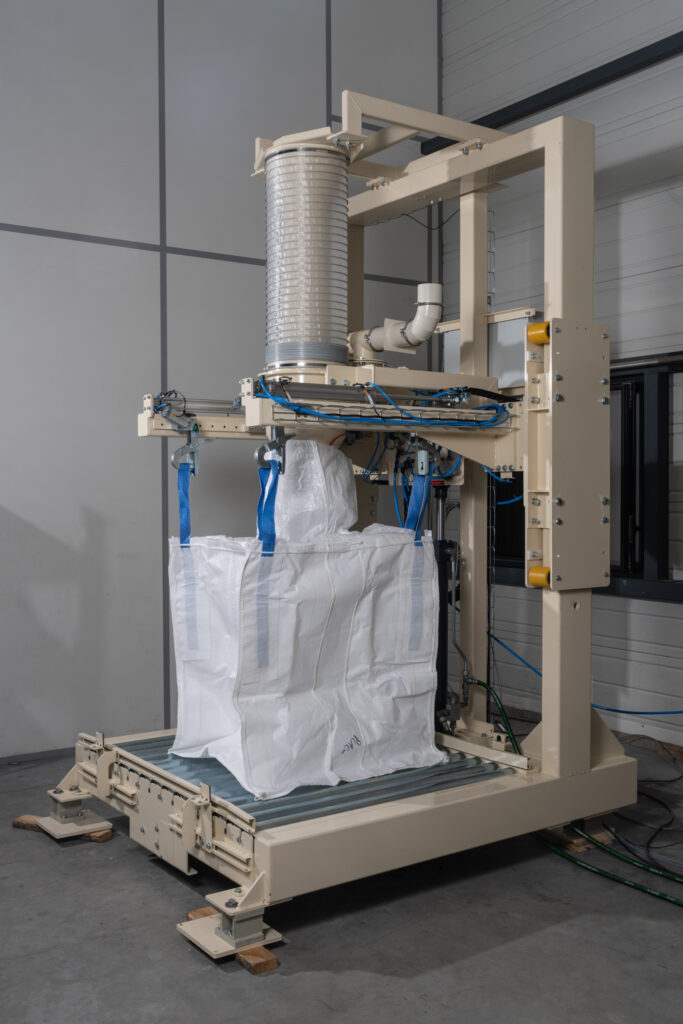

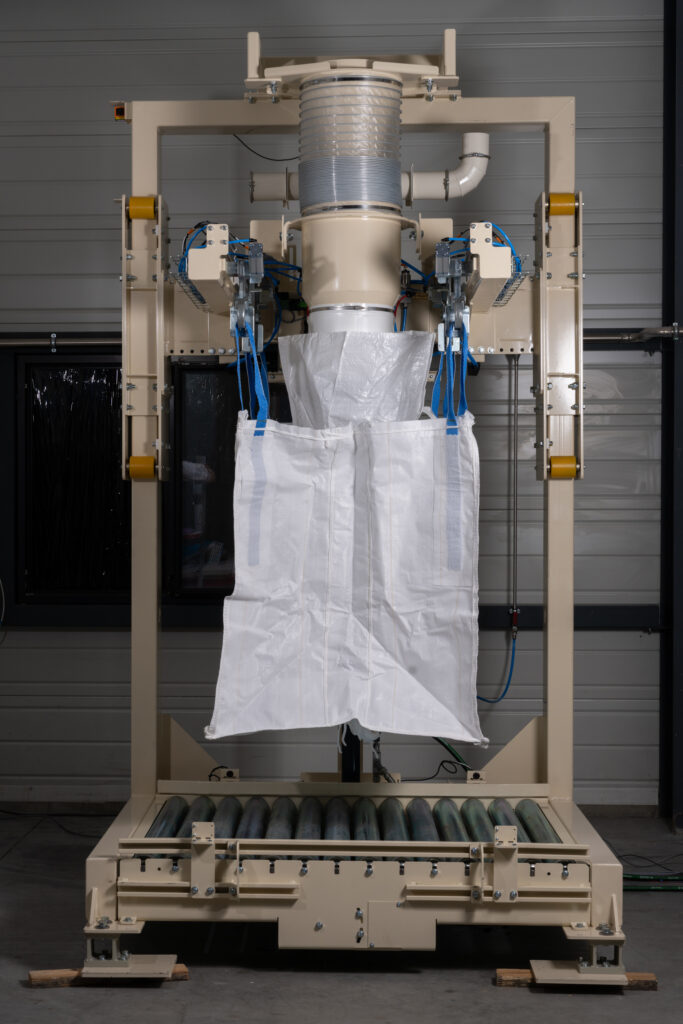

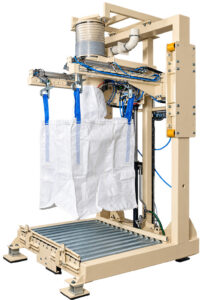

COB-M · Adjustable Filling Head
For more demanding materials and a variety of big bag formats.
- Height-adjustable filling head
- Easier bag attachment
- Accommodates different container dimensions

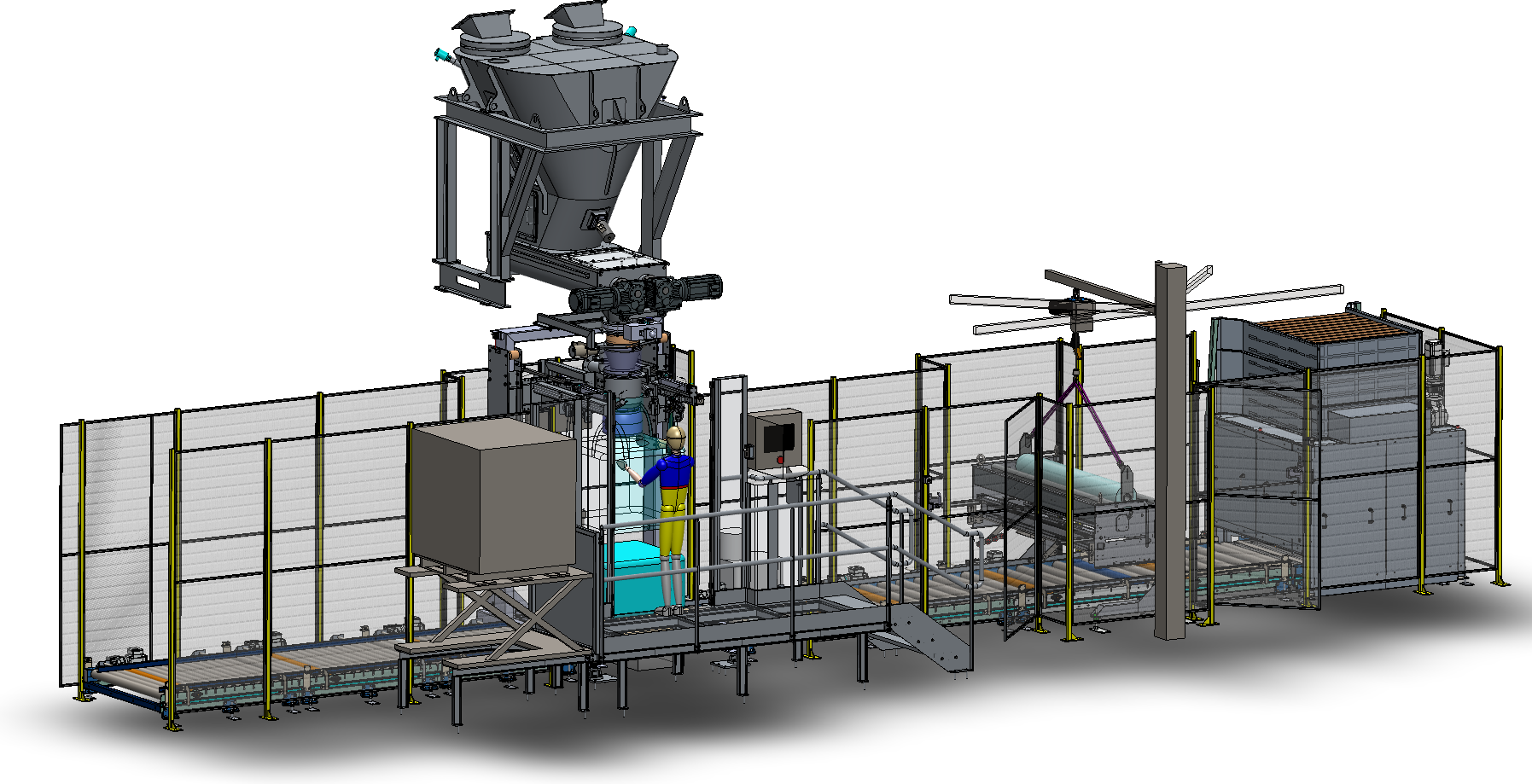

Semi-Automatic Filling Line
An integrated solution for high filling rates.
- Up to 50 big bags per hour
- Heavy-duty hydraulic lifting system
- Optional automated pallet feeding and discharge
| Criterion | COB-F | COB-M | Semi-Automatic Line |
|---|---|---|---|
| Filling Head | Fixed | Adjustable in two directions | Integrated into the line |
| Materials | Less demanding | More demanding | — |
| Big Bag Formats | Standard, single format | Various formats | Wide range of formats |
| Filling Rate | — | — | Up to 50 big bags/h |
How a Filling Cycle Works
At the heart of the equipment, a filling head with an inflatable seal ensures optimal containment throughout the filling process.
- Big bag positioning — attachment to the filling head, with optional pre-inflation and tensioning
- Dust-tight connection — the inflatable seal closes around the filling spout
- Filling — vibration-assisted compaction and weighing, depending on configuration
- Bag release and discharge — optional automatic bag release and pallet handling
Big Bag Filling Station Options
A wide range of options can be integrated to optimize your installation.
Big Bag Handling
- Big bag pre-inflation and tensioning
- Adjustable filling head

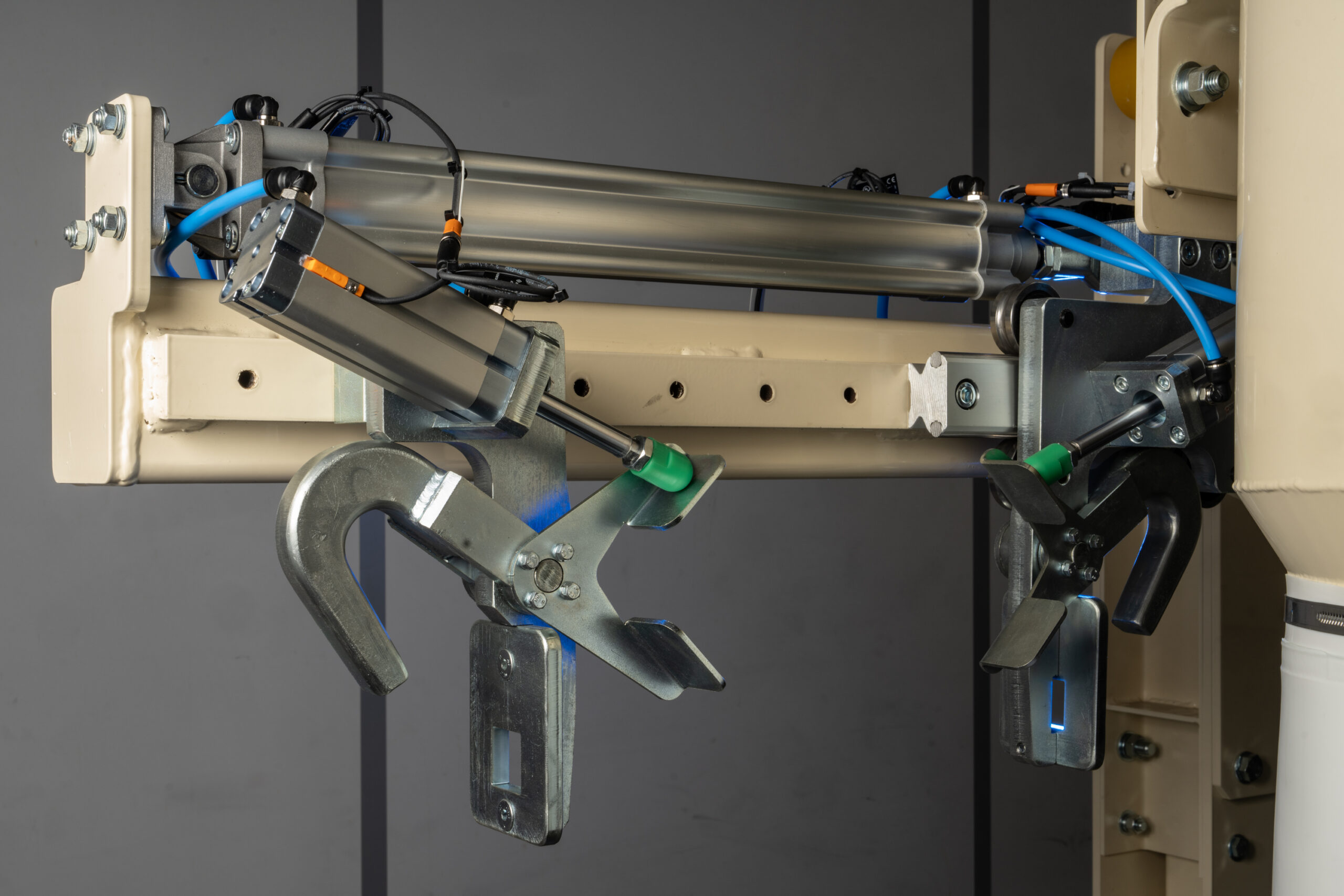

- Automatic big bag release
- Laser-controlled filling head positioning
Filling Quality
- Vibration-assisted compaction (vibrating platform)
- Industrial and/or trade-approved weighing
- Inflatable seal for dust-tight filling
Working Environment & Safety
- Dust extraction at the filling spout during filling
- Protection through physical guards and safety light curtains
Automation & Control
- Automatic pallet feeding and discharge
- Application of protective plastic film to the pallet
- Touchscreen interface for complete line control
Technical Specifications of Our Big Bag Filling Stations
| Specification | Value |
|---|---|
| Typical Payload | 1,000 to 2,000 kg (up to 2 tonnes) |
| Filling Rate | Up to 50 big bags per hour |
| Lifting System | Heavy-duty hydraulic system |
| Compatible Formats | Wide range of big bag sizes |
Big Bag Filling in Compliance with ATEX, CMR, FDA and EC 1935 Requirements
The filling point is a critical source of potential emissions: this is where the material leaves the containment of your production line. Our stations are designed to meet ATEX and CMR requirements, as well as FDA and EC 1935 standards for food processing applications. Our expertise also covers challenging materials, including hygroscopic products, nanoparticles and heat-sensitive materials.
Industries Using Our Big Bag Filling Stations
Our stations are used in packaging lines across a wide range of industries, handling materials with different flow and processing characteristics.
MATERIALS
mortar
cocoa powder
flour & premixes
recycled materials
Completed Big Bag Filling Installations
Bulk Loading Unit — 3 Loading Stations
screed & mortar
Big Bag Filling Unit — 3 Stations
recycling
Big Bag Filling Unit — 1 Station with Integrated Weighing
cocoa powder
Big Bag Filling Unit
1 fluidized buffer hopper (2.4 m³), 1 screw feeder (integrated CIP), 1 filling station with integrated vibration and weighing · mortar
Design Your Big Bag Filling Station with Sofraden Bulk
Engineering & Consulting
Requirements analysis and decision-making support, including ATEX area classification
Custom Engineering
Design tailored to your product, container formats and target filling rate
30 Years of ATEX & CMR Expertise
After-Sales Service
Long-term technical support
Tell Us About Your Production Line. We'll Design the Right Filling Station.
Product characteristics, big bag formats, target filling rate, ATEX / CMR or food processing requirements: tell us about your needs, and our team will get back to you with a technical assessment.
Frequently Asked Questions About Big Bag Filling
The COB-F, with its fixed filling head, is suitable for less demanding materials and standard-sized big bags. The COB-M, with a filling head adjustable in two directions, is designed for more demanding materials and different big bag formats, making bag attachment easier.
Up to 50 big bags per hour with the semi-automatic filling line.
From 1,000 to 2,000 kg, up to 2 tonnes.
Containment is provided by a filling head with an inflatable sealing gasket. Dust extraction at the filling spout can also be added as an option.
Yes. Industrial and/or trade-approved weighing systems are available, depending on your requirements.
Yes. Options include automatic pallet feeding and discharge, application of protective plastic film, and touchscreen control of the filling line.
