Dosing & Microdosing
Helmet
Valve
Deliver high flow rates without compromising dosing accuracy or space. The helmet valve combines controlled dosing with a capacity of up to 80 m³/h in a compact design that integrates into existing installations.
VINCI Group / Actemium
30 Years of Bulk Handling Expertise
Up to 80 m³/h
ATEX Option
The helmet valve is designed to combine controlled dosing and high flow rates without taking up excessive space. Its compact design makes it easy to integrate into existing production lines without major modifications, particularly in processes involving the handling and transfer of powders or granules.
This combination of high flow rate, controlled dosing and compact footprint sets it apart from conventional dosing solutions, which often require a compromise between these three requirements.
How the Helmet Valve Works

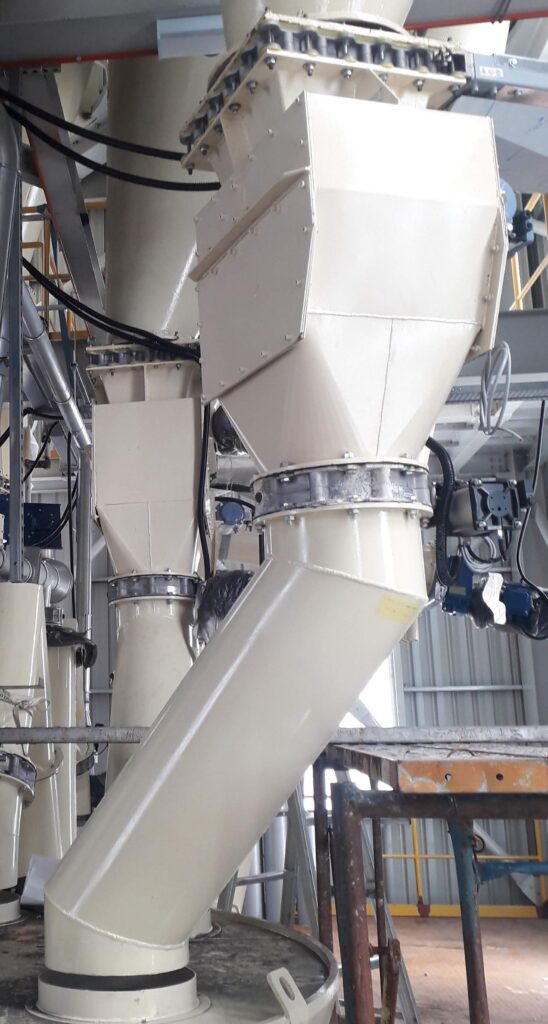

At the heart of the valve, a helmet-shaped, welded pendulum assembly regulates product flow. It is housed in a fully sealed enclosure that contains the material throughout dosing — particularly important for powders and granules. The helmet is operated by a rotary actuator, ensuring reliable, accurate and repeatable dosing from one cycle to the next. Optimized geometry provides precise flow control even at high throughput.
In summary:
- Welded pendulum helmet — regulates material flow
- Fully sealed enclosure — contains the material
- Rotary actuator — ensures reliable, accurate and repeatable dosing
- Optimized geometry — maintains flow control, even at high rates
Sizes and Materials
tailored to your application
Each valve is sized to suit your process. A range of sizes is available to match your upstream and downstream equipment, required flow rate and installation constraints.
Three material options are available depending on your product and operating environment:
- Standard carbon steel
- Stainless steel — for food processing and chemical applications
- Abrasion-resistant steel — for highly abrasive or aggressive materials
Helmet Valve Technical Specifications
| Specification | Value |
|---|---|
| Available Sizes | Equivalent to DN200–DN400 |
| Maximum Flow Rate | Up to 80 m³/h |
| Dosing Accuracy | 0.8 to 1.5 L |
| ATEX Option | Available |
Robust Design and Reduced Maintenance
Designed for intensive use, the helmet valve is built to last. Its maintenance requirements are comparable to those of a standard process valve, with no special servicing constraints, helping maximize equipment availability.
Intensive Use
Excellent Durability
Standard Valve Maintenance
Helmet Valve Applications

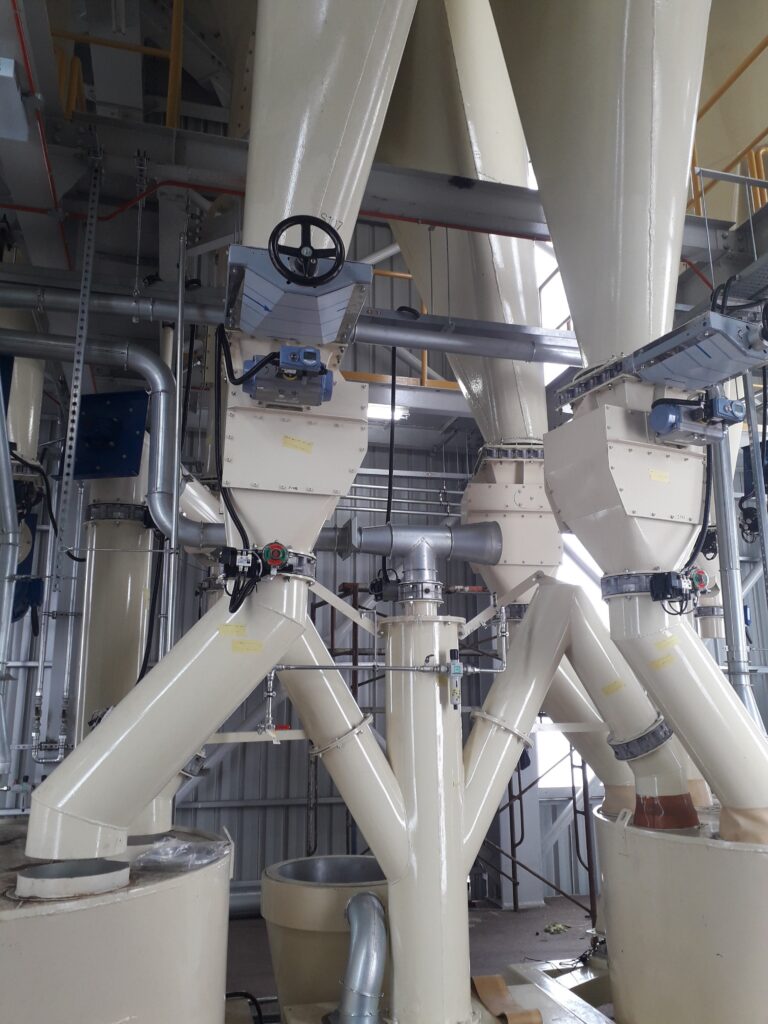

The helmet valve integrates into powder and granular material handling and transfer processes wherever high flow rates and controlled dosing are required.
Industries: Food Processing · Chemicals (stainless steel version) · Abrasive Applications (abrasion-resistant steel)
Applications: high-flow dosing and integration into existing installations
Design Your Helmet Valve with Sofraden Bulk
Engineering & Sizing
matched to your upstream/downstream equipment, flow rate and layout
Material Selection
carbon steel, stainless steel or abrasion-resistant steel to suit your product
30 Years of Bulk Handling Expertise
After-Sales Service
long-term technical support
Size Your Helmet Valve with Us
Required flow rate, product characteristics, upstream and downstream equipment: share your requirements and our team will provide a technical assessment.
Frequently Asked Questions About Helmet Valves
Up to 80 m³/h, making it suitable for high-flow dosing applications.
Equivalent to DN200–DN400, sized to suit your process.
0.8 to 1.5 L.
Standard carbon steel, stainless steel (food processing and chemicals) or abrasion-resistant steel (highly aggressive or abrasive materials).
Yes, an ATEX option is available.
No. Maintenance is comparable to that of a standard process valve, helping maximize uptime.
Compliance
ATEX
