Material Transfer & Conveying
Belt Conveyor
for Bulk Materials
Convey your dry or wet bulk materials with belt conveyors designed to meet your site's requirements — up to 40 m long and 200 tonnes/hour. From equipment supply to complete installation, fully integrated into your production line.
VINCI Group / Actemium
30 Years of Bulk Handling Expertise
Up to 200 tonnes/hour
From Equipment Supply to Complete Installation
For conveying dry or wet bulk materials, Sofraden Bulk designs belt conveyors tailored to your industrial requirements. Our offering ranges from supplying a standalone conveyor to delivering a complete installation integrated into your production environment.
Each conveyor is engineered and sized according to your site's specific constraints: conveying distance, inclination, material characteristics, throughput and connections to upstream and downstream equipment.
A Belt Conveyor Designed for Your Site
The design is based on your key operating parameters:
- Conveying distance
- Required inclination
- Material characteristics (dry or wet)
- Required conveying capacity
- Interfaces with upstream and downstream equipment
Options for Your Belt Conveyor
Our belt conveyors can incorporate a wide range of options to meet your process requirements.
- Receiving hopper — for unloading trucks or handling equipment
- Belt weighing system — real-time measurement of conveyed tonnage
- Automated material bed height adjustment
- Mobile conveyor — lateral movement or rotation depending on the feeding point
- Belt misalignment monitoring
Special Options:
- Heavy-duty version — for abrasive or aggressive materials
- Sludge collection downstream of the belt scraper — for wet materials
Technical Specifications of Our Belt Conveyors
| Specification | Value |
|---|---|
| Length | Up to 40 m |
| Inclination | Up to 20° |
| Capacity | Up to 200 tonnes/hour |
| Installed Power | Up to 5.5 kW |
Safety, Guarding and Maintenance
Our conveyors incorporate all necessary active and passive safety devices in compliance with local regulations. Their robust design helps minimize long-term maintenance requirements, while optional access walkways can be provided to facilitate inspections.
Active & Passive Safety
Robust Design

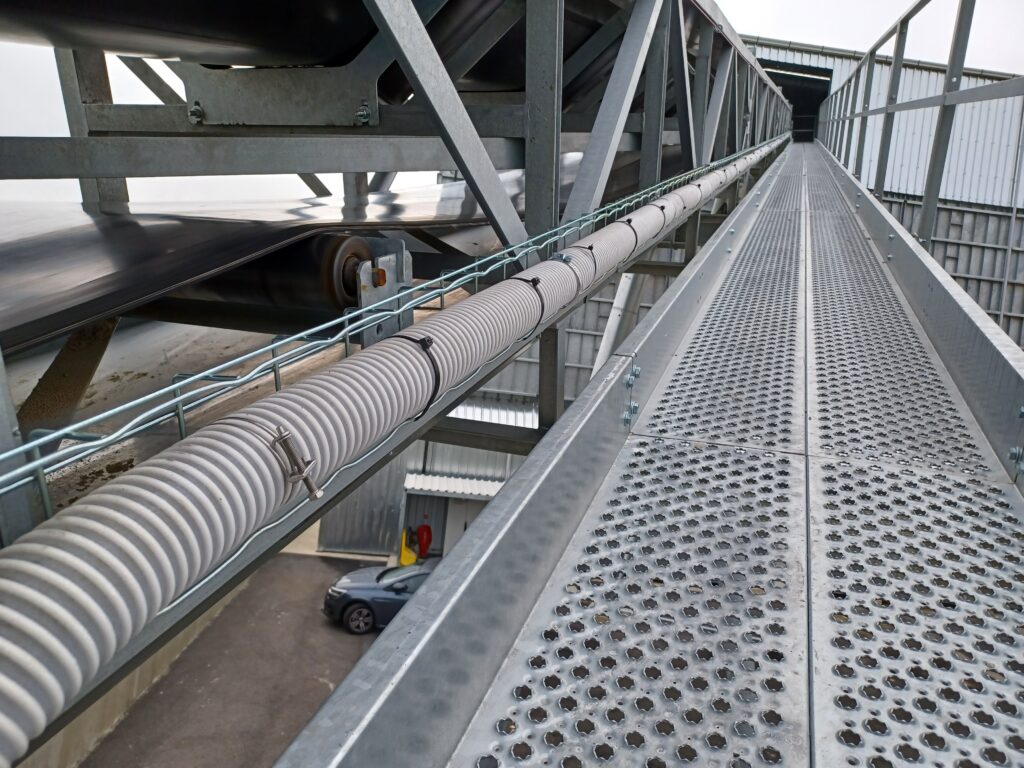

Access Walkways
Applications of Our Belt Conveyors
Our belt conveyors handle a wide range of dry and wet bulk materials, both upstream and downstream of your production processes.
Material Types: dry, wet, abrasive or aggressive materials (heavy-duty version)
Applications: truck or mobile equipment unloading, production line feeding and transfers between equipment
Design Your Belt Conveyor with Sofraden Bulk
Engineering & Sizing
design based on your site's operating parameters
From Equipment Supply to Complete Installation
standalone conveyor or fully integrated system
30 Years of Bulk Handling Expertise
After-Sales Service
long-term technical support
Tell Us About Your Requirements. We'll Design and Size Your Conveyor.
Distance, inclination, material characteristics and target throughput: share your specifications with us, and our team will get back to you with a technical assessment.
Frequently Asked Questions About Belt Conveying
Up to 40 m in length and 20° inclination, depending on your site's configuration.
Up to 200 tonnes/hour, with installed power of up to 5.5 kW.
Yes. They can handle both dry and wet materials, with optional sludge collection downstream of the belt scraper.
A heavy-duty version is available for these applications.
Yes. An optional belt weighing system enables real-time measurement of conveyed tonnage.
The robust design helps reduce maintenance requirements over time. Optional access walkways are available to facilitate inspections.
Compliance
ATEX · CMR · FDA · EC 1935
