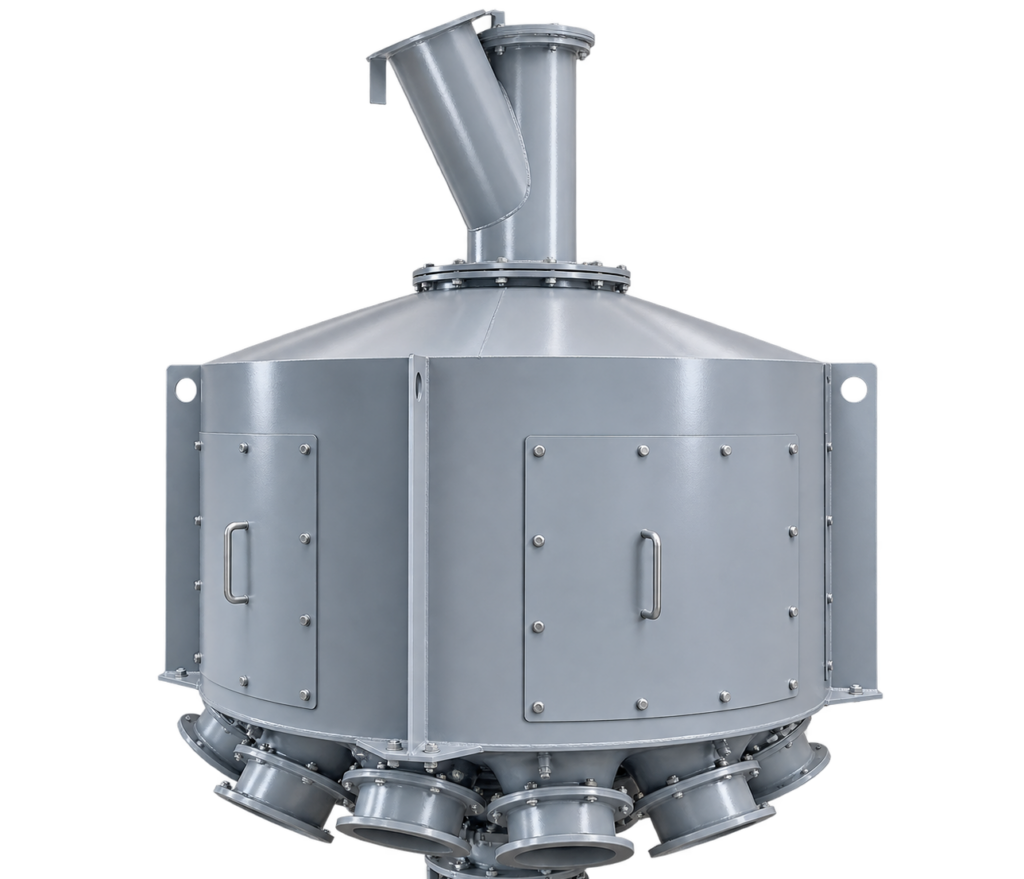

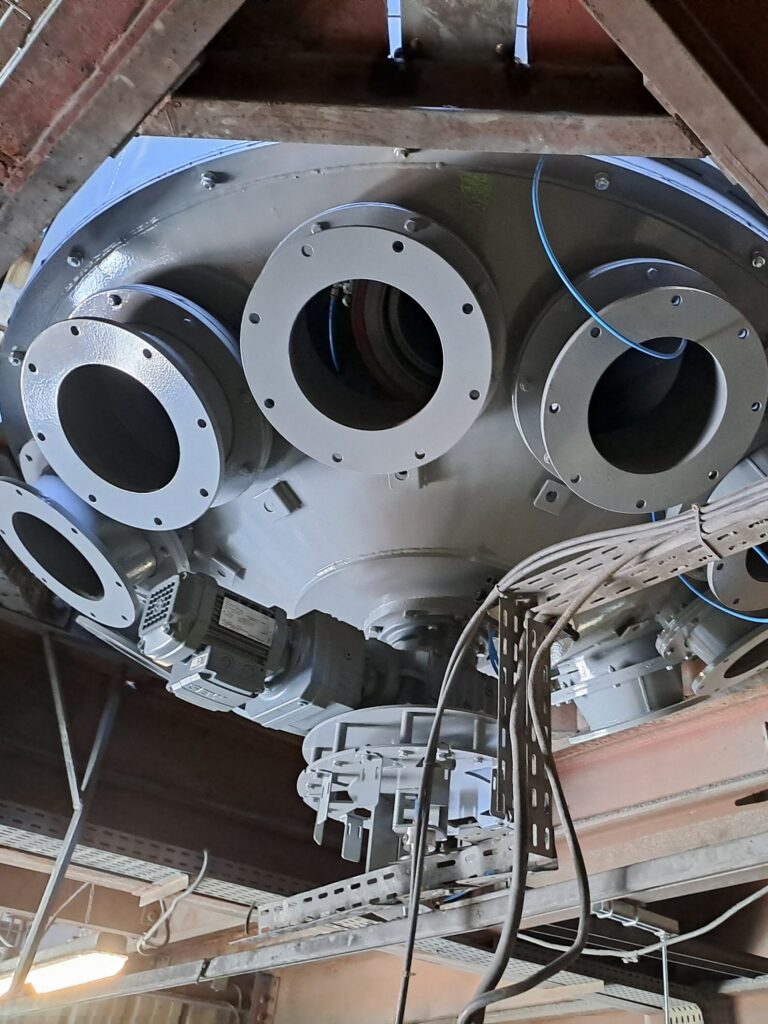

Multiway
Diverter
Supply multiple destinations from a single source — with up to 10 outlets. A sealed rotary connection selects the required outlet through simple rotation, ensuring reliability and long service life.
VINCI Group / Actemium
30 Years of Bulk Handling Expertise
Up to 10 Outlets
ATEX-Compatible
How can one source feed multiple destinations without duplicating conveying lines? Themultiway diverter meets this requirement through a sealed rotary connection : a simple rotation directs material to the selected outlet.
This equipment is primarily intended for specific requirements and custom solutions — particularly for diverting flows in pneumatic conveying systems where standard off-the-shelf solutions are insufficient.
How the Multiway Diverter Works
Its operating principle is simple and robust: a sealed rotary connection directs the material flow. Rotation selects one of the available outlets, enabling a change of destination without complex intervention. The sealed connection helps ensure reliable conveying and long equipment life.
Configurations
tailored to your requirements
After carefully defining your requirements, we configure compact, robust equipment designed for minimal maintenance. Different configurations are available to meet your constraints:
- Aggressive or Corrosive Environments
- Installation and Process Integration Constraints
- ATEX Area Compatibility
Multiway Diverter Main Specifications
| Specification | Value |
|---|---|
| Number of Outlets | Up to 10 Outlets |
| Version | Gravity-fed or suitable for pneumatic conveying |
| Angles (Gravity-Fed Version) | Defined according to configuration |
| Robustness | Heavy-duty version for demanding applications |
| Connection | Sealed rotary connection (reliability and long service life) |
Multiway Diverter Applications
The multiway diverter is suited to any application in which a single source must feed multiple destinations, particularly where standard solutions cannot meet the requirements.
Applications:
- Large number of destinations to supply
- Flow diversion in pneumatic conveying systems
- Process constraints not covered by standard market solutions
Design Your Multiway Diverter with Sofraden Bulk
Detailed Requirements Assessment
number of outlets, installation type and operating environment
Compact, Robust Configuration
designed for minimal maintenance
Gravity-Fed or Pneumatic Compatibility
30 Years of Bulk Handling Expertise · After-Sales Service
Configure Your Multiway Diverter
Number of outlets, installation type (gravity-fed or pneumatic) and operating environment: share your requirements and our team will provide a technical assessment.
Frequently Asked Questions About Multiway Diverters
Up to 10 outlets.
Both versions are available: gravity-fed or suitable for pneumatic conveying.
By rotating a sealed rotary connection.
Yes, dedicated configurations are available, including a heavy-duty version for demanding applications.
Yes.
No. Its compact, robust design minimizes maintenance requirements.
Compliance
ATEX · CMR · FDA · CE 1935
